gear coupling
CL gear coupling
Time:18-09-19
gear coupling
CL gear coupling
Time:18-09-19
|

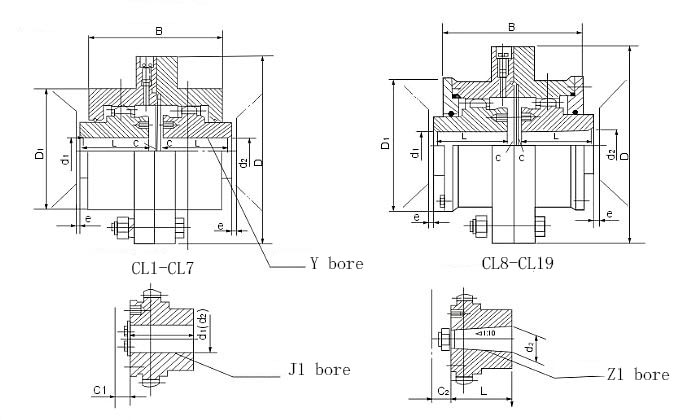

Features and applications: With a small amount of axis offset compensation performance, can not buffer, reduce vibration. The outer shape is small, theoretically, the transmission torque is large, and it needs lubrication and sealing, but the noise is large and the price is expensive, and it is used for connecting the horizontal two coaxial line shaft transmission. It is used to connect two horizontal coaxial lines under low speed and heavy load conditions, such as metallurgical machinery and heavy machinery. CL and CLZ type are spur gear type, which is used for low speed and heavy load. The two horizontal shafts are connected. The straight tooth type compensation performance is poor. It is a eliminated type and has been replaced by drum type gear. It should not be used again. CL type - straight type basic type, used for direct connection between two auxiliary ends; CLZ type--straight tooth type intermediate shaft type for two-axis long-distance connection |
